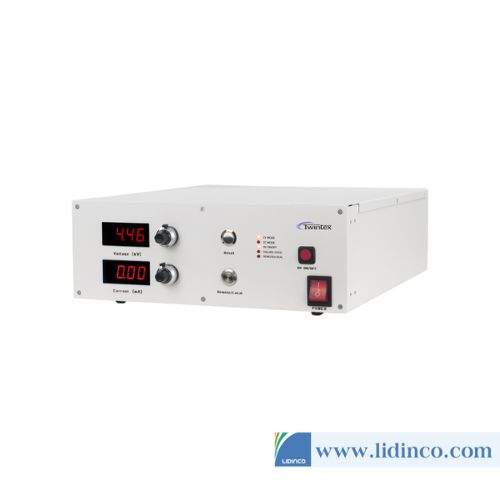

HV Serie Variable DC High Voltage Power Supply Twintex HV Series
HV Serie Variable DC High Voltage Power Supply Twintex HV Series
- Available: Please contact
- There are currently no promotions for this product
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: [email protected]
- Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: [email protected]
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
-
Technical Counseling
100% Free
-
Free Shipping
For 3.000.000vnd Order
Data is being updated
Descriptions
HV series are high voltage dc power supply, available from 10kv to 200kv output. Output control can be switched between remote control and local control. Output displays and output indicators are direct on front panels and can be lead to external remote display screen. The high-voltage output terminal has over-current, over-current, short-circuit protection and arc protection.
The HV series are widely used in electrostatic applications, such as electrostatic dust removal, electrostatic spinning, electrostatic electret, electrostatic separation, electrostatic spraying, electrostatic flocking.
The HV series can also be used in high voltage insulation test, material sorting, metal vaporization, high voltage deburring and laboratory test.
Features
- Output voltage full range adjustable
- Positive output +10kV to +200kV
- Negative output -10kV to -200kV
- 4 digits LED display for voltage and current
- Low EMI, strong anti-interference ability
- OVP, OCP, ARC and short circuit protections
- 0-10V analog control for voltage and current output
Applications
- Meltblown cloth electrostatic electret equipment
- Electrostatic spinning
- Electrostatic dust removal
- Capacitor charge and discharge
- Cable aging test, cable leakage test
- Optical fiber withstand voltage test
