AVAS Test System MSZ ZR-TLOG-AVAS

Overview

This system is specifically designed for automated testing in compliance with the R138 standard. The system enables real-time data collection and transmission to an application computer via networking. The software analyzes and processes data in real-time. Key components include dedicated microphone sensors, an acoustic signal processing box, a driver-assist display, a comprehensive data acquisition module, and a dual-antenna GPS. All components are connected via LEMO connectors to ensure stable and reliable data transmission. The computer communicates with the data acquisition host in real-time. Through optimized testing procedures, the system simplifies operations and automatically executes test protocols after calibration, eliminating manual intervention and minimizing human impact on test results

The ZR-TLOG-AVAS vehicle ride comfort testing system includes a data acquisition host, driver display, remote control handle, sound acquisition box, microphones, WiFi communication bridge, and PC data processing softwar

System Configuration & Specifications

1. TLOG-PRO Data logger

Features:

• Integrated 100 Hz GPS module.
• 2K sampling rate (software-adjustable).
• 4 digital channels, 4 encoder signal channels.
• 8 analog input channels (24-bit, independently powered).

GPS:

• Maximum Output Rate: 100 Hz.
• RTK Horizontal Error: 0.6 cm + 0.5 ppm.
• RTK Vertical Error: 1 cm + 1 ppm.
• RTK Initialization Time: 7 s.

Channels:

• 8 × Analog;
• 8 × TCDS.
• 4 × Digital;
• 4 × Encoder;
• 4 × Thermocouple.

Communication:

• CAN (CAMFD compatible), max 8 Mbps.
• 100M Ethernet UDP.

Panel Interfaces:

• 2 × CAM with power interfaces.
• 2 × Ethernet ports;
• 1 × DC Jack.

Performance Parameters:

• ADC Resolution: 24-bit.
• Max Sampling Rate: 2 kHz.
• Voltage Measurement Range: ±20 mV, ±10 V, ±60 V.
• Voltage Measurement Accuracy: ±0.05% ±5 μV (at ±20 mV); ±0.05% ±5 mV (at ±10 V, ±60 V).
• Excitation: 5 V, 10 V.

Digital Input:

• Input Voltage: TTL.
• Frequency Measurement Range: 0.1–350 kHz.
• Excitation Voltage: 10 V; Excitation Current: 100 mA.
• Excitation Error: ±3%, ±50 mV.

Environmental & Physical:

• Weight: 1000 g.
• Dimensions: L × W × H: 180 × 61 × 80 mm.
• Operating Temperature: -20 °C to +65 °C.
• Protection Rating: IP65

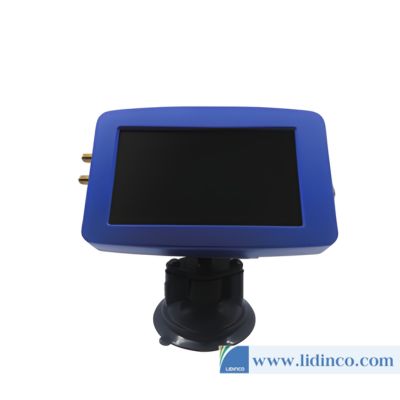

2. TLOG-DSP Driver display

• Designed for regulatory testing, displays real-time data (speed, distance, pressure, temperature, humidity) under different test conditions to assist drivers in meeting requirements.
• Built-in barometric pressure sensor, supports external temperature/humidity sensors.
• Outputs data via CAN bus

3. Acoustic signal processing box

Box:

• Resolution: 24-bit.
• Channels: 1.
• Input Range: ±0.568V, ±1.135V, ±3.7125V.
• Sampling Rate: 32 kHz.

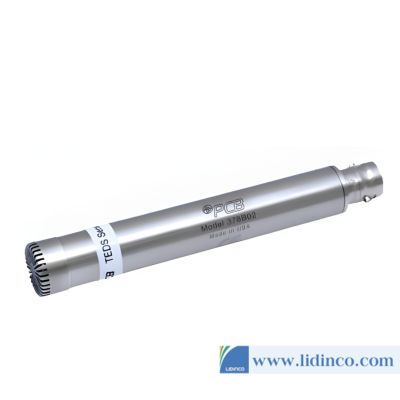

Microphone:

• Sensitivity: 50 mV/Pa (±1.5 dB).
• Frequency Range: 3.75 Hz–20 kHz (±2 dB).
• Dynamic Range: 15.5 dB(A)–146 dB

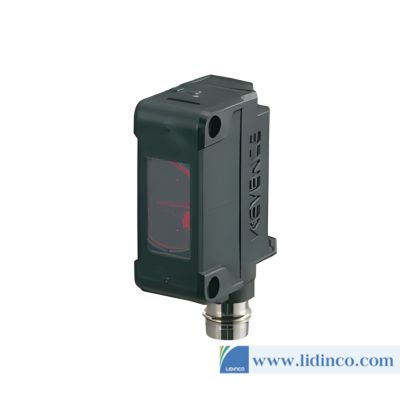

4. Light barrier

• Power Supply: 10–30 VDC.
• Light Source: Red LED.
• Output: NPN.
• Detection Range: 0.1–4.2 m.
• Response Time: 500 μs.
• Indicators: Output (orange LED), Stable Operation (green LED).
• Sensitivity Adjustment: Rotary knob (230°)

3. Testsuite Software

TESTSUITE is a professional automotive testing solution compliant with national standards. It provides comprehensive data analysis tools for rapid and simplified vehicle performance testing. The software consists of modular programs, each corresponding to a specific test item. All modules share a unified interface, consistent data management, and flexible data processing methods

Supported Test Systems:

• Powertrain Performance.
• Braking Performance (including ABS).
• Fuel Economy.
• Road Load (Coast-Down, Torque Method).
• Handling Stability.
• Trajectory Analysis (Minimum Turning Diameter, Swept Path, Deviation).
• Speed Limiter System.
• Brake Assist System (BAS).
• Vehicle Ride Comfort.
• Acoustic Testing: Pass-by Noise, Low-Speed Warning Sound (AVAS), Stationary Noise, Interior Noise.
• ADAS Testing.
• Gearshift Performance
