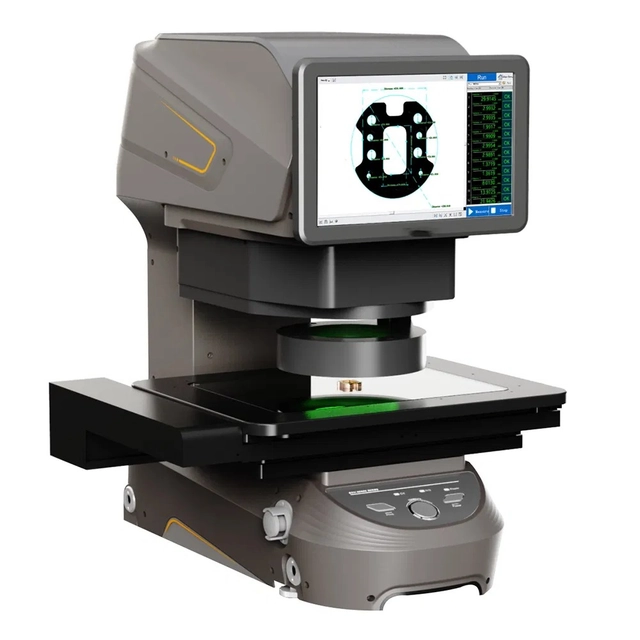

VMM JTDIM-300 Measurement System Description

The VMM JTDIM-300 measurement system belongs to the JTDIM series, a new generation of optical measurement systems from JATEN TECH. The JTDIM-300 combines AI technology with high-resolution cameras to deliver an automated, fast, and accurate dimensional inspection solution for industrial manufacturing.

Simply place the product and press one button to complete various measurements. The JTDIM-300 supports a maximum field of view of 300×200mm, enabling mobile measurement and seamless switching between large and small fields of view. The large field of view ensures rapid measurement, while the small field of view delivers high precision, achieving measurement accuracy of up to 1μm.

Key Features of JTDIM Series

Seamless Integration with Automated Production Lines:

The IM series can be integrated into automated production lines, effectively addressing challenges in dimensional inspection and improving efficiency.

Compact & Portable Desktop Fast Measurement System:

• Designed for desktop use, offering a compact structure that is easy to transport
• Ideal for rapid online and near-line dimensional measurement
• Measurement is initiated with a single button press and can be customized to integrate with customer I/O signals for fully automated measurement

Automated Data Management & Reporting:

Measurement reports can be automatically uploaded to the customer's data management system, ensuring seamless workflow integration.

Next-Generation Hardware with AI-Driven Precision:

• Incorporates advanced AI algorithms for high-precision surface light measurement
• Equipped with dual telecentric lenses paired with two 20-megapixel cameras, automatic lifting multi-angle surface lighting, and a customized coaxial surface light for optimal accuracy

AI-Powered Edge Detection & Noise Filtering:

• Utilizes AI-based edge computing algorithms for precise surface edge detection
• Effectively filters out noise and invalid regions, ensuring high measurement accuracy

High-Precision Surface Measurement:

Delivers high-precision dimensional measurement with surface light measurement repeatability comparable to backlight measurement.

High-Speed Measurement & User-Friendly Software:

• Measures up to 100 points in just 1 second, significantly reducing inspection time
• Intuitive software interface with streamlined workflow, enabling effortless measurement programming and report configuration

Fully Automated & User-Independent Accuracy:

• Equipped with automatic focusing, positioning, and measurement functions
• Ensures consistent and stable inspection results, regardless of the operator's skill level

High-Precision Drive System:

By enabling micron-level adjustments of the cross-roller guide rail, the system achieves excellent linearity and eliminates errors caused by movement of the stage.
